| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | RVYUAN |
| ได้รับการรับรอง: | IEC/NEMA/JIS/RoHS/ISO |
| หมายเลขรุ่น: | อือ |
| จำนวนสั่งซื้อขั้นต่ำ: | 10 กก. |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | ม้วนด้วยกล่อง |
| เวลาการส่งมอบ: | 7 วัน |
| เงื่อนไขการชำระเงิน: | ที/ที, เพย์พาล |
| สามารถในการผลิต: | ตอบสนองความต้องการของคุณ |
| Shape: | Rectangular | Width of conductor: | 2.4mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Thickness of conductor: | 0.5mm |
| Applications: | UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor | Thermal Grade: | 220 |
| Key word: | UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor | ||
| เน้น: | UEWH Solderable Flat Copper Wire,Motor Solderable Flat Copper Wire,Solderable Enameled Flat Copper Wire |
||

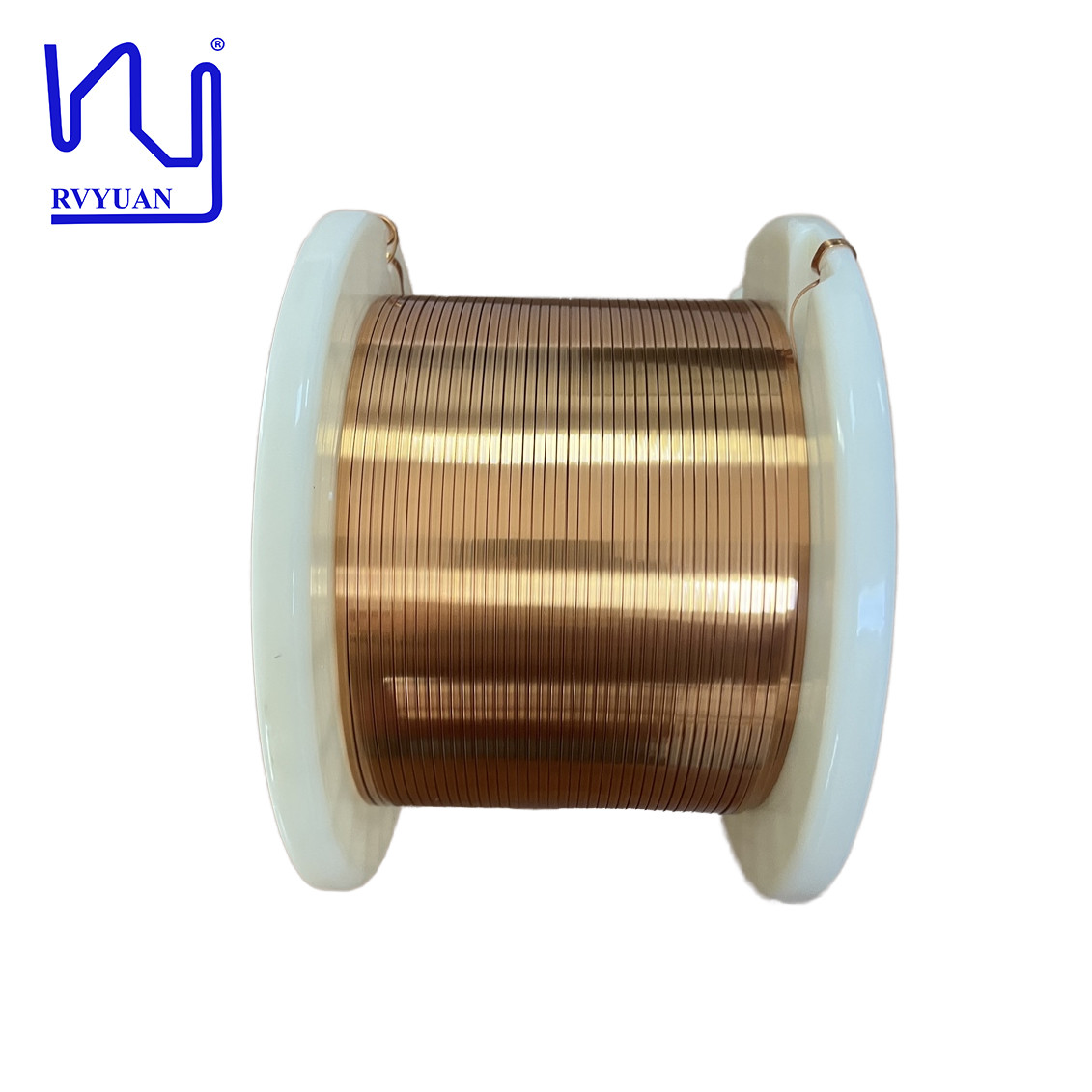

UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor
Enameled rectangular copper wire is an indispensable material in the manufacture of motors and transformers, where reliability and heat resistance are critical. The rectangular design allows for optimal packing density, ensuring more wires fit in a given space, which is essential for maximizing the efficiency of electrical equipment. Our wires are carefully designed for excellent conductivity and very low energy loss, making them the preferred choice of engineers and manufacturers.
|
Item
|
Conductor dimension
|
Unilateral insulation thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance | ||||
| T | W | T | W |
T
|
W | ||||
| Unit |
mm
|
mm
|
mm | mm |
mm |
mm |
kv |
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.400
|
0.025 | / |
/
|
/ | ||
|
Max
|
0.509
|
2.460
|
0.040 | 0.550 | 0.0550 | 2.500 | 16.090 | ||
|
Min
|
0.491
|
2.340 | 0.010 |
|
0.700 | ||||
|
No. 1
|
0.501
|
2.405 | 0.039 | 0.544 |
0.544
|
2.483
|
4.880 |
14.437 |
|
| No. 2 | 0.500 | 2.406 | 0.039 | 0.545 | 0.545 | 2.485 | 4.331 | ||
| No. 3 | 0.502 | 2.407 | 0.039 | 0.543 | 0.543 | 2.484 | 3.660 | ||
| No. 4 | 4.515 | ||||||||
| No. 5 | 4.600 | ||||||||
| No. 6 | 4.770 | ||||||||
| No. 7 | 4.440 | ||||||||
| No. 8 | 4.250 | ||||||||
| No. 9 | 3.990 | ||||||||
| No. 10 | 3.750 | ||||||||
|
Avg
|
0.501
|
2.406 | 0.022 | 0.039 | 0.544 | 2.484 | 4.319 | ||
|
No.of reading
|
3 | 3 | 3 | 3 | 3 | 3 | 10 | ||
|
Min. reading
|
0.500 | 2.405 | 0.021 | 0.022 |
0.543
|
2.483 | 3.660 | ||
|
Max. reading
|
0.502 | 2.407 | 0.023 | 0.039 |
0.545
|
2.485 | 4.880 | ||
|
Range
|
0.002
|
0.002
|
0.002 | 0.001 |
0.002
|
0.002
|
1.220 | ||
|
Result
|
OK
|
OK
|
OK
|
OK |
OK
|
OK
|
OK
|
OK | |
