| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | RVYUAN |
| ได้รับการรับรอง: | IEC/NEMA/JIS/RoHS/ISO |
| หมายเลขรุ่น: | อือ |
| จำนวนสั่งซื้อขั้นต่ำ: | 10 กก. |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | ม้วนด้วยกล่อง |
| เวลาการส่งมอบ: | 7 วัน |
| เงื่อนไขการชำระเงิน: | ที/ที, เพย์พาล |
| สามารถในการผลิต: | ตอบสนองความต้องการของคุณ |
| Shape: | Rectangular | Width of conductor: | 2.4mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Thickness of conductor: | 0.5mm |
| Applications: | UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire | Thermal Grade: | 220 |
| Key word: | UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire | ||
| เน้น: | 0.06mm Rectangular Wire,UEWH-180 Rectangular Wire,0.50mm Enameled Rectangular Wire |
||

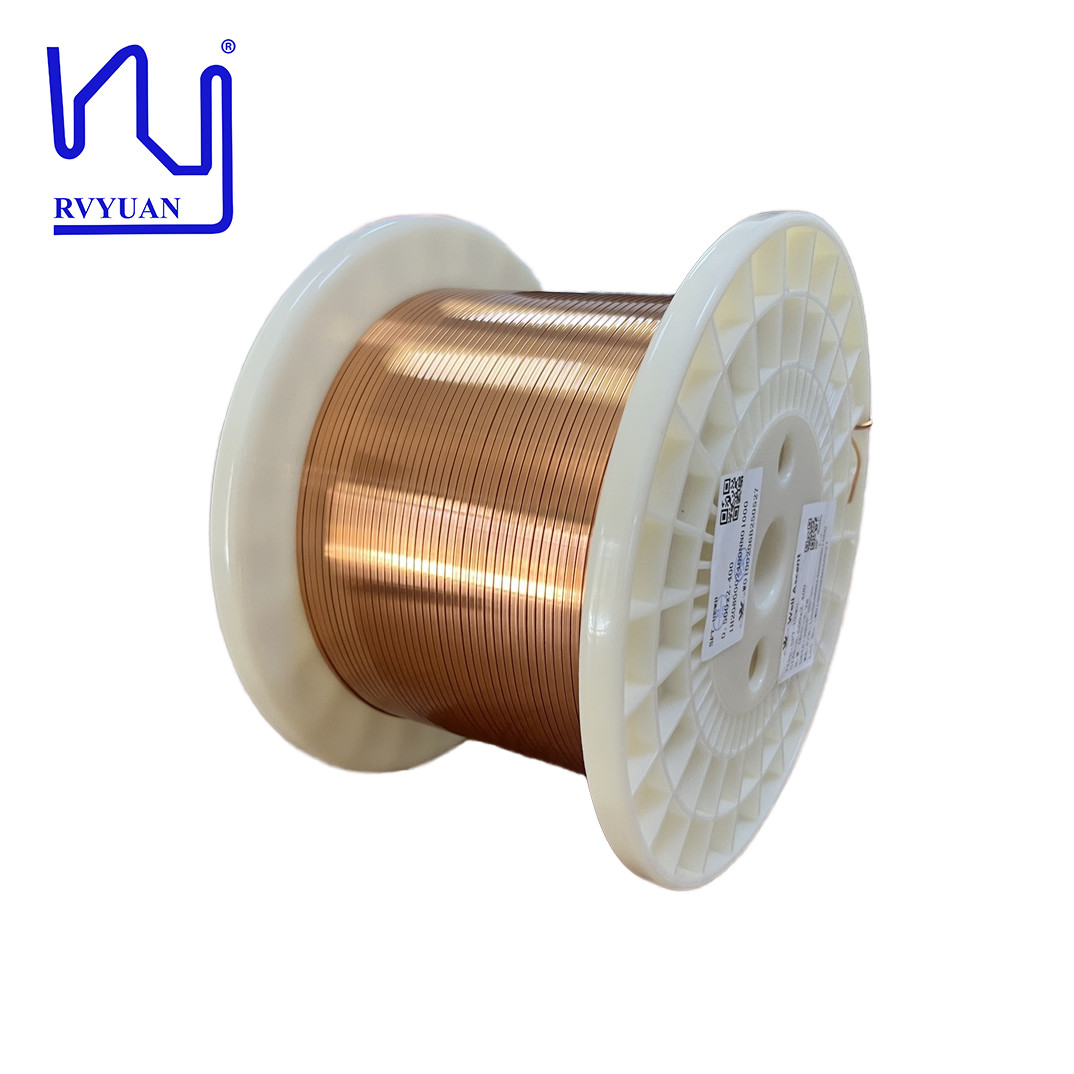

UEWH-180 0.50mm 0.06mm Rectangular Wire Enameled Flat Copper Wire
We understand that every project has unique requirements, so we offer small custom options. For finer wire gauges, our minimum order quantity is just 10 kg. We can offer a wide range of sizes, with thicknesses ranging from 0.03 mm to 3 mm, and widths up to 15 mm. This flexibility allows you to tailor your wire to your specific needs, ensuring you get the perfect product for your application.
|
Item
|
Conductor dimension
|
Unilateral insulation thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance |
||||
| T | W | T | W |
T
|
W | ||||
| Unit |
mm
|
mm
|
mm | mm |
mm |
mm |
kv |
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.400
|
0.025 | / |
/
|
/ | ||
|
Max
|
0.509
|
2.460
|
0.040 | 0.550 | 0.0550 | 2.500 | 16.090 | ||
|
Min
|
0.491
|
2.340 | 0.010 |
|
0.700 | ||||
|
No. 1
|
0.501
|
2.405 | 0.039 | 0.544 |
0.544
|
2.483
|
4.880 |
14.437 |
|
| No. 2 | 0.500 | 2.406 | 0.039 | 0.545 | 0.545 | 2.485 | 4.331 | ||
| No. 3 | 0.502 | 2.407 | 0.039 | 0.543 | 0.543 | 2.484 | 3.660 | ||
| No. 4 | 4.515 | ||||||||
| No. 5 | 4.600 | ||||||||
| No. 6 | 4.770 | ||||||||
| No. 7 | 4.440 | ||||||||
| No. 8 | 4.250 | ||||||||
| No. 9 | 3.990 | ||||||||
| No. 10 | 3.750 | ||||||||
|
Avg
|
0.501
|
2.406 | 0.022 | 0.039 | 0.544 | 2.484 | 4.319 | ||
|
No.of reading
|
3 | 3 | 3 | 3 | 3 | 3 | 10 | ||
|
Min. reading
|
0.500 | 2.405 | 0.021 | 0.022 |
0.543
|
2.483 | 3.660 | ||
|
Max. reading
|
0.502 | 2.407 | 0.023 | 0.039 |
0.545
|
2.485 | 4.880 | ||
|
Range
|
0.002
|
0.002
|
0.002 | 0.001 |
0.002
|
0.002
|
1.220 | ||
|
Result
|
OK
|
OK
|
OK
|
OK |
OK
|
OK
|
OK
|
OK | |
