| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | RVYUAN |
| ได้รับการรับรอง: | IEC/NEMA/JIS/RoHS/ISO |
| หมายเลขรุ่น: | อือ |
| จำนวนสั่งซื้อขั้นต่ำ: | 10 กก. |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | ม้วนด้วยกล่อง |
| เวลาการส่งมอบ: | 7 วัน |
| เงื่อนไขการชำระเงิน: | ที/ที, เพย์พาล |
| สามารถในการผลิต: | ตอบสนองความต้องการของคุณ |
| Shape: | Rectangular | Width of conductor: | 2.4mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Thickness of conductor: | 0.5mm |
| Applications: | Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor | Thermal Grade: | 220 |
| Key word: | Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor | ||
| เน้น: | Flat Copper Wire Rectangular,2.4mm Solderable Copper Wire,Motor Solderable Copper Wire |
||

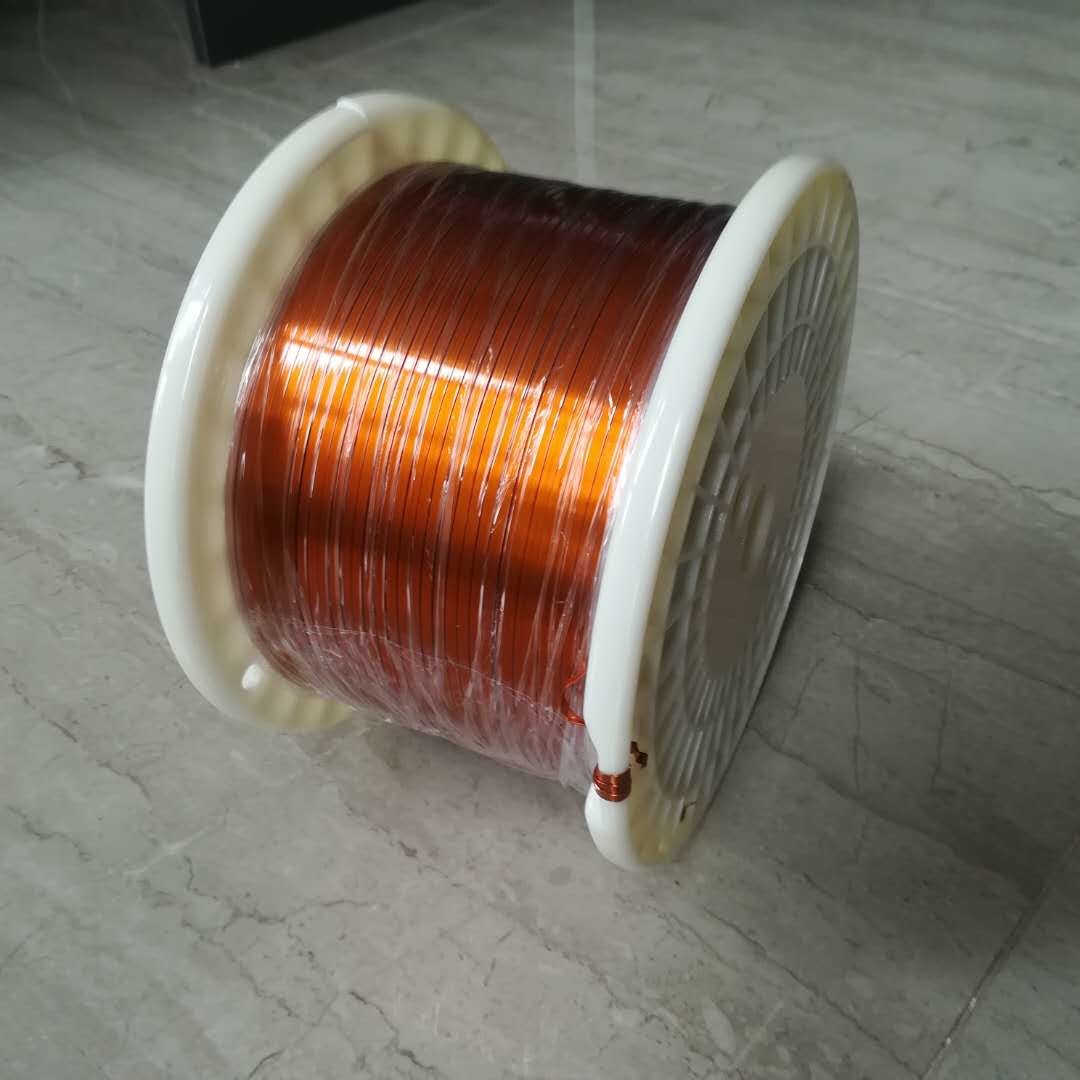

Solderable 2.4mm Rectangular Wire Enameled Flat Copper Wire For Motor
If you are looking for reliable, high-performance solutions for motor and transformer winding, our custom enameled rectangular copper wires are the ideal choice. We are committed to providing high quality and customized services, and are committed to supporting your projects with the best quality enameled rectangular copper wires on the market.
|
Item
|
Conductor dimension
|
Unilateral insulation thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance |
||||
| T | W | T | W |
T
|
W | ||||
| Unit |
mm
|
mm
|
mm | mm |
mm |
mm |
kv |
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.400
|
0.025 | / |
/
|
/ | ||
|
Max
|
0.509
|
2.460
|
0.040 | 0.550 | 0.0550 | 2.500 | 16.090 | ||
|
Min
|
0.491
|
2.340 | 0.010 |
|
0.700 | ||||
|
No. 1
|
0.501
|
2.405 | 0.039 | 0.544 |
0.544
|
2.483
|
4.880 |
14.437 |
|
| No. 2 | 0.500 | 2.406 | 0.039 | 0.545 | 0.545 | 2.485 | 4.331 | ||
| No. 3 | 0.502 | 2.407 | 0.039 | 0.543 | 0.543 | 2.484 | 3.660 | ||
| No. 4 | 4.515 | ||||||||
| No. 5 | 4.600 | ||||||||
| No. 6 | 4.770 | ||||||||
| No. 7 | 4.440 | ||||||||
| No. 8 | 4.250 | ||||||||
| No. 9 | 3.990 | ||||||||
| No. 10 | 3.750 | ||||||||
|
Avg
|
0.501
|
2.406 | 0.022 | 0.039 | 0.544 | 2.484 | 4.319 | ||
|
No.of reading
|
3 | 3 | 3 | 3 | 3 | 3 | 10 | ||
|
Min. reading
|
0.500 | 2.405 | 0.021 | 0.022 |
0.543
|
2.483 | 3.660 | ||
|
Max. reading
|
0.502 | 2.407 | 0.023 | 0.039 |
0.545
|
2.485 | 4.880 | ||
|
Range
|
0.002
|
0.002
|
0.002 | 0.001 |
0.002
|
0.002
|
1.220 | ||
|
Result
|
OK
|
OK
|
OK
|
OK |
OK
|
OK
|
OK
|
OK | |
