USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: RVYUAN
ได้รับการรับรอง: ISO9001/ISO14001 /UL/SGS
หมายเลขรุ่น: USTC
จำนวนสั่งซื้อขั้นต่ำ: 10 กิโลกรัม
ราคา: negotiable
รายละเอียดการบรรจุ: สปูลกับกล่อง
เวลาการส่งมอบ: 2-15 วันทำงาน
เงื่อนไขการชำระเงิน: t/ t/ paypal
สามารถในการผลิต: ตอบสนองความต้องการของคุณ
ข้อมูลรายละเอียด
เส้นผ่าศูนย์กลาง: 0.071 มม. อุณหภูมิ: 155
ได้รับการรับรอง: IEC/NEMA/JIS/RoHS/ISO ตัวนำ: ทองแดง
เส้น: 250 แรงดันไฟฟ้า: 1300
ฉนวน: อุย ชื่อผลิตภัณฑ์: USTC Litz Wire 0.071mmx250 ผ้าไหมธรรมชาติ
คำสำคัญ: USTC Litz Wire 0.071mmx250 ผ้าไหมธรรมชาติ
เน้น:

natural silk covered litz wire

,

0.071mm litz wire with silk

,

ustc litz wire 250 strands


รายละเอียดสินค้า

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire
The unique construction of silk covered litz wire provides excellent conductivity and effectively reduces skin effect, making it ideal for high-frequency applications. In transformer winding, the wire's flexibility and durability ensure it withstands the rigors of continuous operation while maintaining optimal performance. Furthermore, the natural silk covering provides excellent insulation, further enhancing the wire's performance in harsh environments. Whether you're designing a new transformer or developing a high-fidelity audio system, the silk covered litz wire delivers exceptional performance.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250

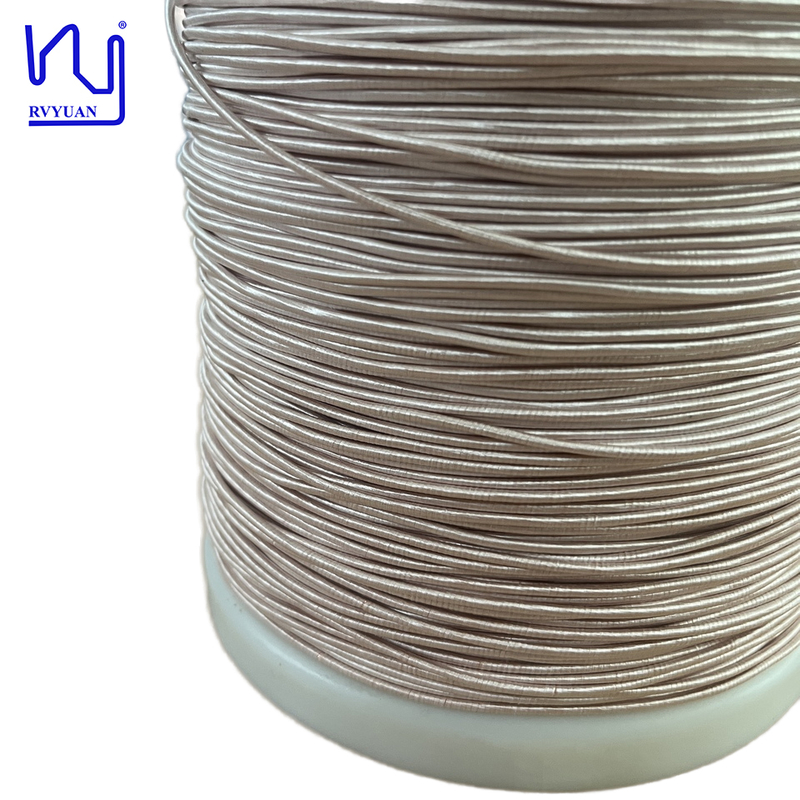

USTC Litz Wire 0.071mmx250 Natural Silk Covered Litz Wire 0
