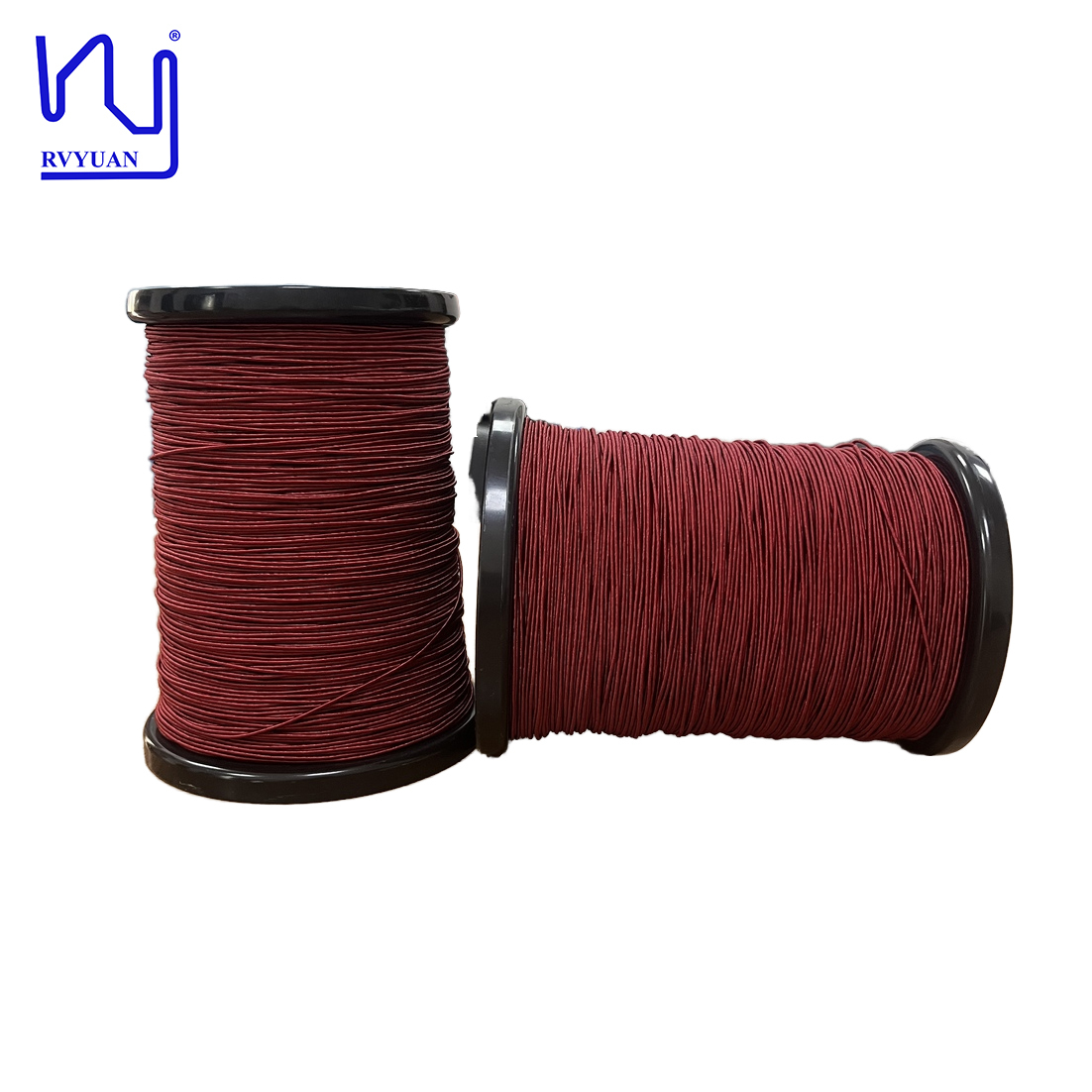

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: RVYUAN
ได้รับการรับรอง: ISO9001/ISO14001 /UL/SGS
หมายเลขรุ่น: USTC
จำนวนสั่งซื้อขั้นต่ำ: 10 กิโลกรัม
ราคา: negotiable
รายละเอียดการบรรจุ: สปูลกับกล่อง
เวลาการส่งมอบ: 2-15 วันทำงาน
เงื่อนไขการชำระเงิน: t/ t/ paypal
สามารถในการผลิต: ตอบสนองความต้องการของคุณ
ข้อมูลรายละเอียด
เส้นผ่านศูนย์กลาง: 0.08 มม. อุณหภูมิ: 155
ได้รับการรับรอง: IEC/NEMA/JIS/RoHS/ISO ตัวนำ: ทองแดง
เส้น: 270 แรงดันไฟฟ้า: min.1100
วัสดุหุ้ม: ไนลอน ชื่อสินค้า: ความถี่สูงควั่น 0.08 มม. 27 เส้นลวด Litz ที่หุ้มด้วยผ้าไหม
คำสำคัญ: ความถี่สูงควั่น 0.08 มม. 27 เส้นลวด Litz ที่หุ้มด้วยผ้าไหม
เน้น:

silk covered litz wire

,

high frequency litz wire

,

27 strands litz wire


รายละเอียดสินค้า

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire 0
