2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

ข้อมูลพื้นฐาน
สถานที่กำเนิด: จีน
ชื่อแบรนด์: RVYUAN
ได้รับการรับรอง: ISO9001/ISO14001 /UL/SGS
หมายเลขรุ่น: USTC
จำนวนสั่งซื้อขั้นต่ำ: 10กก
ราคา: negotiable
รายละเอียดการบรรจุ: เก็บพักด้วยกล่อง
เวลาการส่งมอบ: 2-15 วันทำการ
เงื่อนไขการชำระเงิน: ที/ที/เพย์พาล
สามารถในการผลิต: ตอบสนองความต้องการของคุณ
ข้อมูลรายละเอียด
เส้นผ่านศูนย์กลาง: 0.05มม อุณหภูมิ: 155
ได้รับการรับรอง: IEC/NEMA/JIS/RoHS/ISO คอนดักเตอร์: ทองแดง
เส้น: 225 แรงดันพังทลาย: ขั้นต่ำ 950
วัสดุหุ้ม: ไนลอน ชื่อสินค้า: 2USTC-F ลวดตีเกลียว 0.05 มม. x225 เส้นลวดลิตซ์ที่หุ้มด้วยไหม
คำสำคัญ: 2USTC-F ลวดตีเกลียว 0.05 มม. x225 เส้นลวดลิตซ์ที่หุ้มด้วยไหม
เน้น:

silk covered litz wire

,

0.05mm stranded litz wire

,

225 strands ustc litz wire


รายละเอียดสินค้า

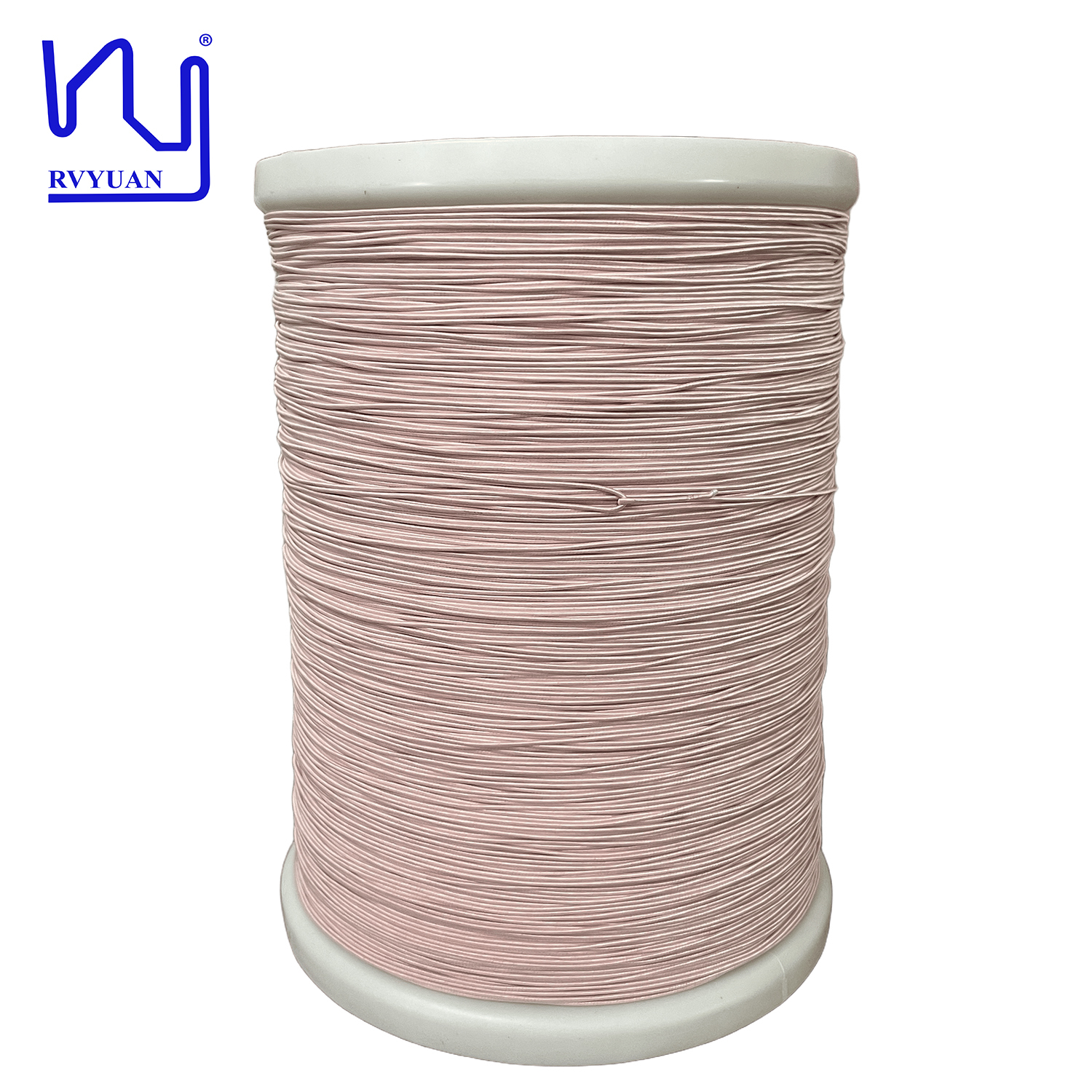

2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire

Silk covered litz wire is a specialized wire designed for high-performance applications in transformer winding, wireless charge winding, audio cable manufacturing, and more. This custom silk covered litz wire was developed for an Indian client specifically for transformer winding applications.

This litz wire features a nylon yarn outer wrapping, with alternative materials such as polyester yarn available for clients with different material preferences. We also offer exquisite natural silk coverings for high-end audio cable applications, with inner conductors typically made from high-purity copper or silver.

Technical Specifications
Item No. Wire Diameter (mm) Conductor Diameter (mm) Overall Dimension (mm) Resistance (Ω/m) Breakdown Voltage (V) Pitch
Tech Requirement 0.055-0.069 0.05±0.003 Max. 1.42 ≤0.04551 ≥950 27±3
Sample 1 0.058 0.048 0.98 0.03858 2400
Sample 2 0.060 0.050 1.06 0.03819 2500
2USTC-F Stranded Wire 0.05mm x225 Strands Silk Covered Litz Wire 0
