| เส้นผ่านศูนย์กลาง: | 0.055มม | อุณหภูมิ: | 155 |
|---|---|---|---|
| ได้รับการรับรอง: | IEC/NEMA/JIS/RoHS/ISO | คอนดักเตอร์: | ทองแดง |
| เส้น: | 126 | แรงดันพังทลาย: | ขั้นต่ำ 950 |
| วัสดุหุ้ม: | ไนลอน | คำสำคัญ: | ผ้าไหมธรรมชาติให้บริการลวด Litz ชุบเงิน 0.055 มม. สำหรับเครื่องเสียง |
| เน้น: | natural silk litz wire,silver plated audio wire,0.055mm litz wire |
||

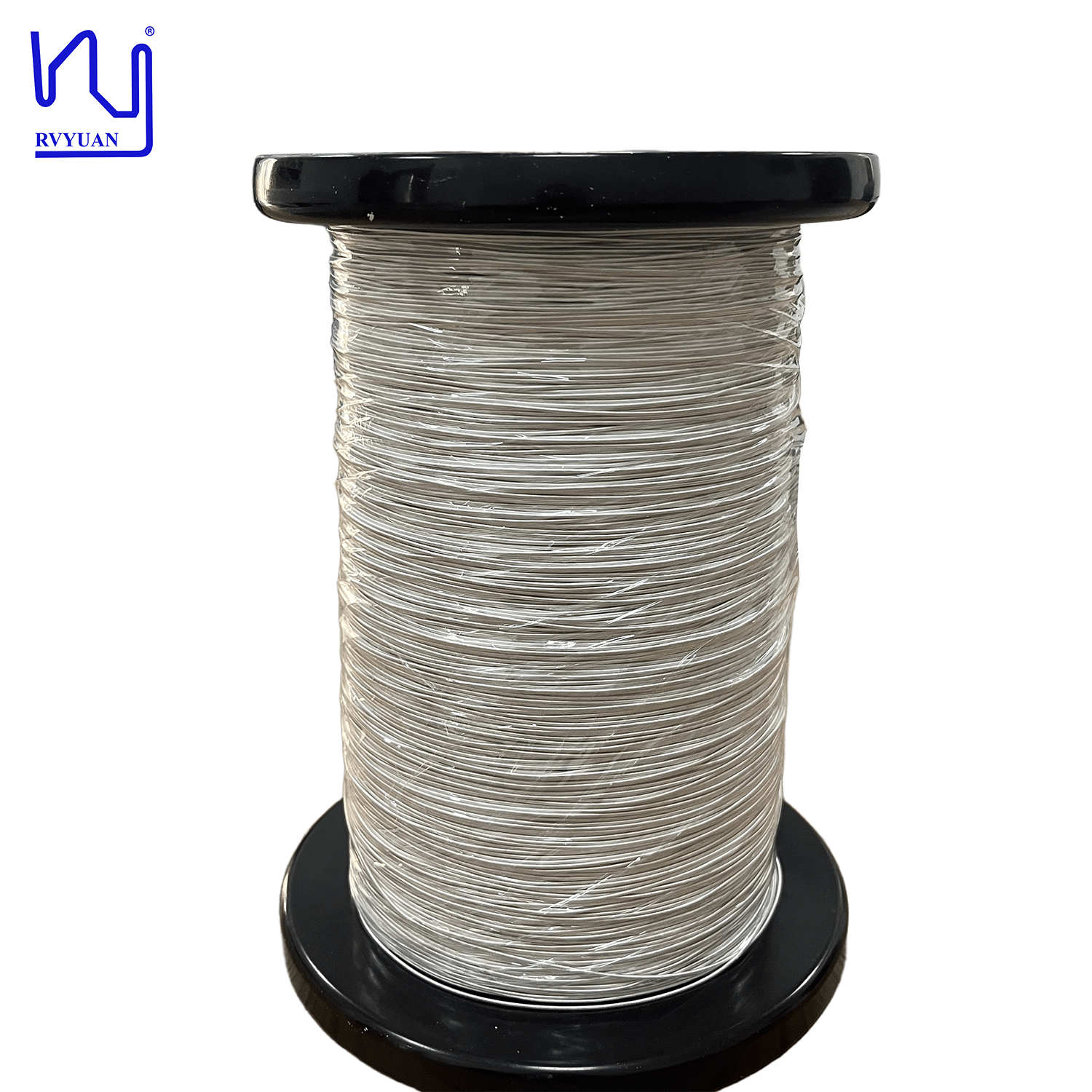

Natural Silk Serving 0.055mm Silver Plated Litz Wire For Audio. The entire litz wire is wrapped in double layers of natural silk. Beyond its aesthetic appeal and flexibility, silk is a superior mechanical damper. It minimizes microphonic noise—the physical vibrations that can be translated into unwanted electrical signals—resulting in a quieter noise floor and allowing for a more lifelike, three-dimensional soundstage. This combination of high-strand Litz geometry, robust enamel insulation, and natural silk damping creates a conductor of unparalleled purity and sonic accuracy.
| Conductor diameter (mm) | 0.0550±0.0030 (silver layer: 0.0002) |
| Single sides insulated layer thickness | 0.0050±0.0010 |
| Electrical resistance of single wire (Ω/m) | 6.243~7.738 |
| Breakdown Voltage (V) | ≥950 |
| Twist Distance (mm) | P1=8±2 P2=21±3 |
| Stranding mode | 18X7 |
| Electrical resistance (Ω/m) | 0.0505~0.0627 |
| Thermal class | F(155) |
| Soldering time | 2S/390±5℃ |
| Twist Direction | Z |
| Faults/5 m (Saline pinhole) | 0 |
